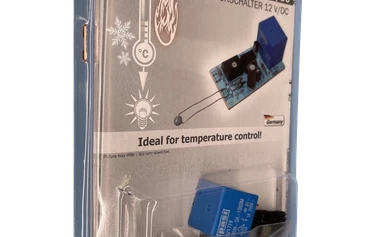

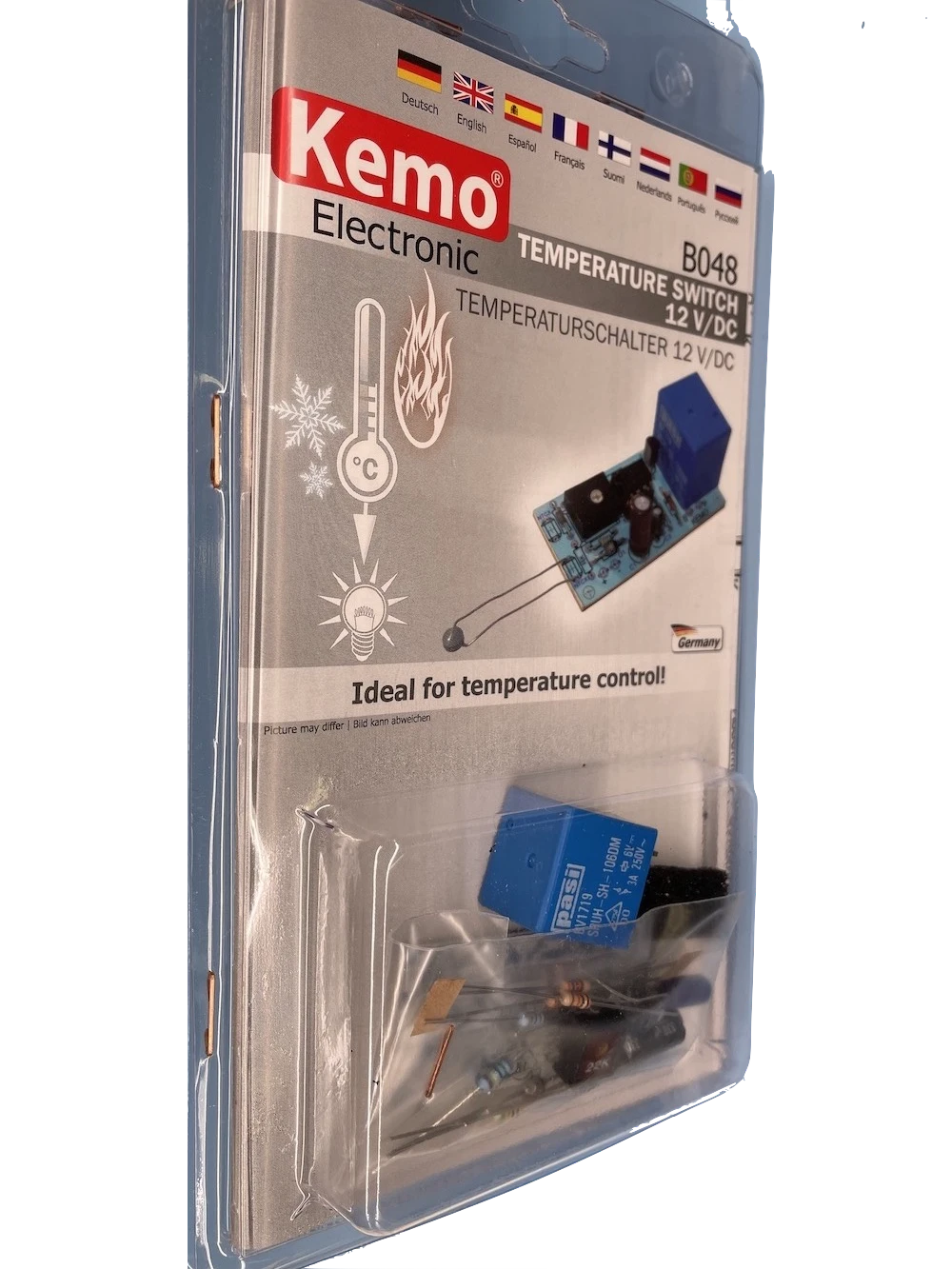

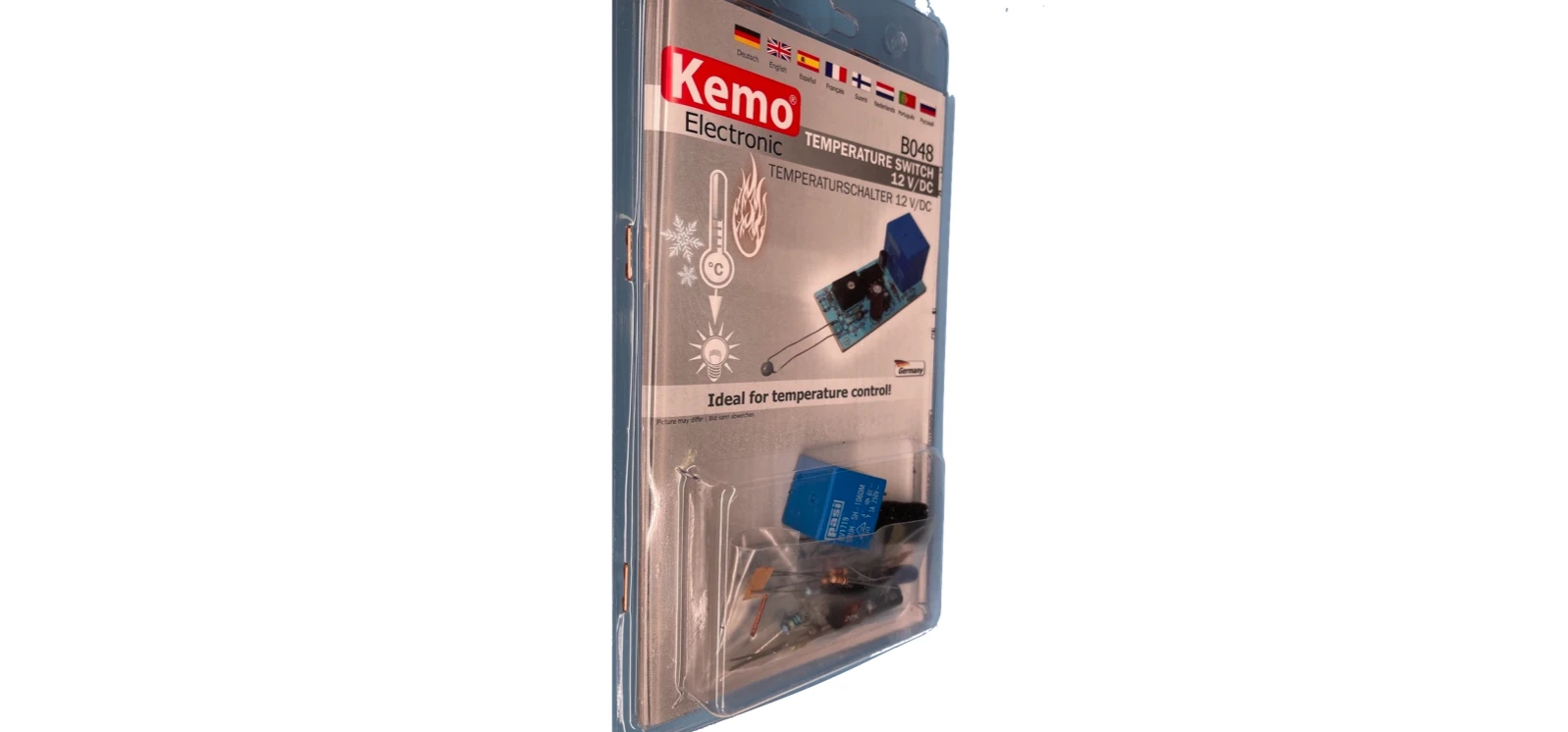

B048 Lämpörajakytkin
Switches according to a preset temperature a relay on or off. Ideal as thermostat, ice alarm, fire detector, etc.
Kit: To solder yourself
Operating voltage: 12 - 14 V/DC
Current consumption: approx. 100 mA at maximum
Temperature switching range: approx. -30°C - +150°C
Relay contact: 1 x ON
Contact capacity relay: max. 25 V, 3 A
Board dimensions: approx. 56 x 27 mm
